Low loss realized with low DCR
Ultra low buzz noise, due to composite construction.
High performance (Isat) realized by metal dust core.
AEC-Q200 qualified.
Operating temperature: -55 to +165 ℃ (including self-temperature rise)

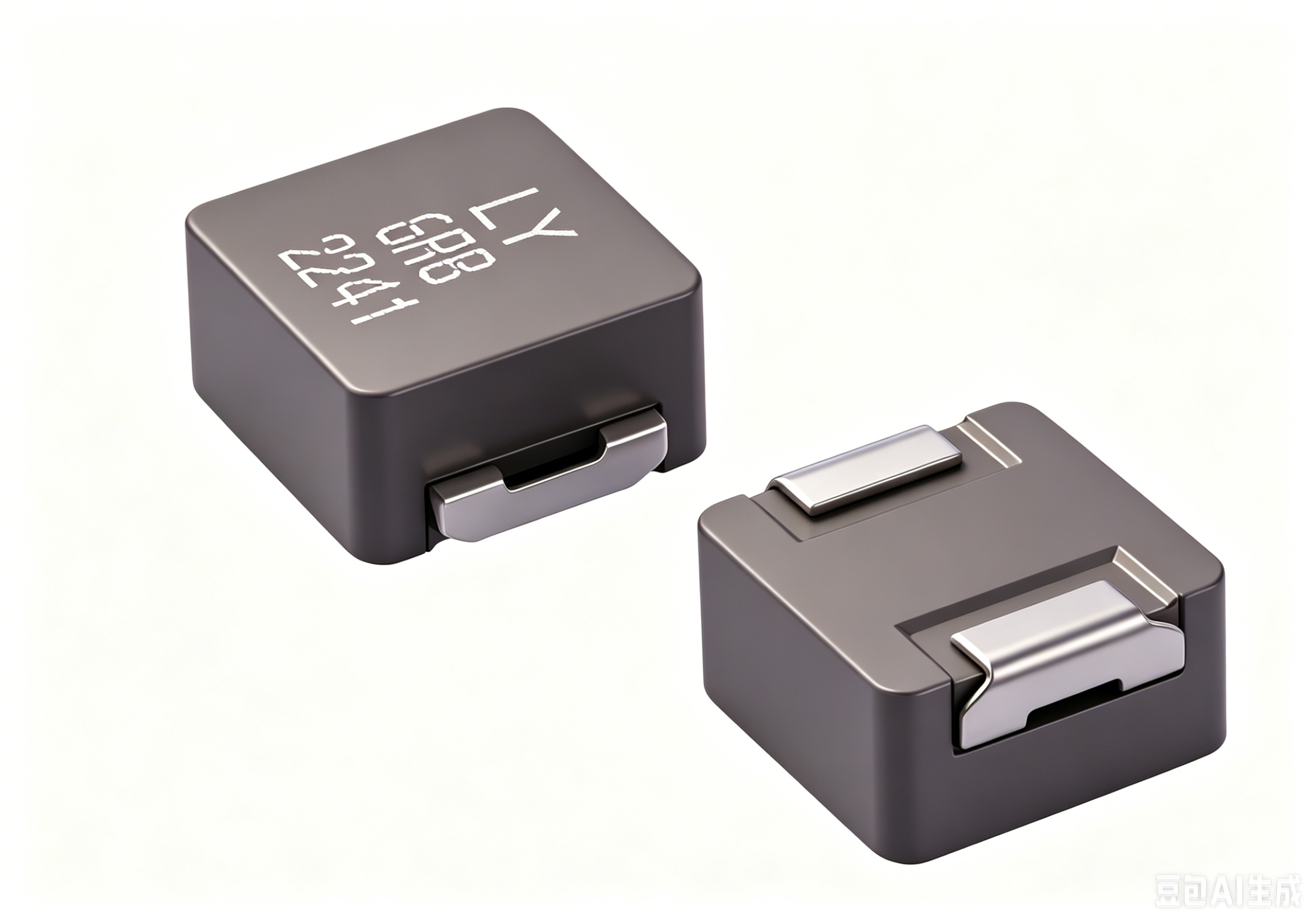

当前位置：首页 > 产品中心 > 车规 > Inductors 电感器 > Shielded Wire wound Inductors 屏蔽式绕线电感器 > VMDAH 大端子车规级一体成型电感
.png)
Low loss realized with low DCR
Ultra low buzz noise, due to composite construction.
High performance (Isat) realized by metal dust core.
AEC-Q200 qualified.
Operating temperature: -55 to +165 ℃ (including self-temperature rise)
产品系列
Product Series
Inductance.(μH)电感量
DCR;max. 直流电阻(mΩ)
Isat;typ. 饱和电流(A)
Irms;typ.温升电流(A)
TOP 工作温度(℃)
Length长(mm)
Width宽(mm)
Heiht高(mm)
查看
view
0.33~10.0
5.000~129.5
2.35~11.7
2.80~16.7
-55~155
5.45±0.35
5.25±0.20
2.8±0.20
0.47~22.0
6.30~187
3.00~14.5
2.70~13.5
-55~155
5.50±0.30
5.25±0.30
3.8±0.20
0.47~22.0
4.62~174
2.40~16.3
2.80~17.0
-55~155
6.95±0.35
6.6±0.20
2.8±0.20
1.50~100
7.300~348.0
2.40~16.4
1.80~11.5
-55~155
7.9±0.30
7.2±0.30
5.2±0.20
1.00~47.0
4.80~135
5.20~22.0
3.50~15.5
-55~155
8.70±0.30
8.30±0.20
5.20±0.20
1.00~47.0
3.10~178
3.20~20.4
3.00~23.7
-55~155
10.85±0.35
10.0±0.30
3.8±0.20
0.68~100
2.22~234
3.50~46.0
2.80~32.0
-55~155
11.0±0.30
10.0±0.30
5.1±0.30
0.47~47.0
1.30~104
6.00~60.0
4.20~41.0
-55~155
13.45±0.35
12.6±0.20
6.2±0.30
样品申请
Sample Request
系列
Series
Part No.型号
Inductance.(μH)电感量
DCR;max. 直流电阻(mΩ)
Isat;typ. 饱和电流(A)
Irms;typ.温升电流(A)
TOP 工作温度(℃)
Length长(mm)
Width宽(mm)
Heiht高(mm)
Footprint 封装
Shield屏蔽
AEC等级
